- Hammonds Model 600 fluid-power injector
- 5 SF 5 gallon pail adapter with on/off valve and dessicant dryer
- 10 foot 1½” fuel hose
- OPW 1½” Model 295 over-wing nozzle with duckbill
- Single-point inlet connection
- Static grounding reel and cable
- Hose storage
- Four-wheel cart for hand transport
- All stainless steel additive fittings and braided hose to container with dry-break connection
PHC1 Portable Hand Cart
PHC1 Portable Hand Cart
The PHC1 Portable Hand Cart is a cost effective and portable additive injection cart ideal for small, low volume fueling of Private / Corporate / Helicopter operators that can’t justify fixed systems or those operators that need to periodically treat their fuel.
- Easy and portable
- Single-point or over-wing
- Accurate additive dosage
- Thorough, complete blending
- Lightweight with easy connections
- Deigned for low flow applications (35-250 GPM)
- Perfect for Private / Business / Helicopter Operations
SPECIFICATIONS
CONSTRUCTION MATERIALS
- Single-point nozzle
- 2” hose
- Additive meter with digital readout and totalizer
- Suction calibration gauge
- Model 150 or Model 800 injectors available (Model 600 shown here)
Product Image

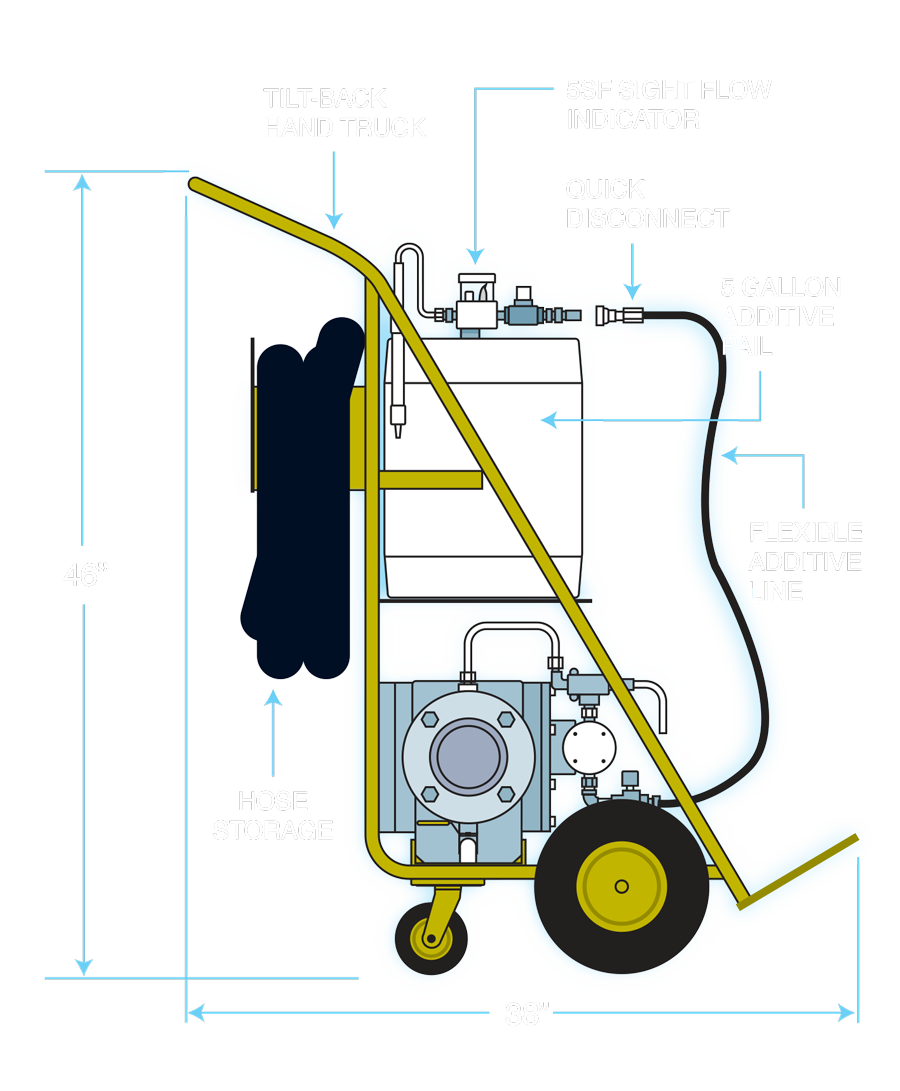

Technical Drawing
(Drawing Above Is Modifiable Per Your Installation)
