- Flooded suction required
- Number of Additives: 1 Standard; up to 4 optional
- 8" 150# connection standard (other connections available, consult factory for details)
- Injection Ratios: 0-4000 ppm depending upon application
- 500 - 2000 GPM continuous operation
- n/a intermittent operation
- Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
- Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
- Product Viscocities: up to 10,000 ssu
- Fuels, Oils, Additives and Liquid Gases
- Duty Cycle: Intermittent
Model 8T
Model 8T
The 8T Series system offers single or multiple additive injection at flow rates typically found in fuel delivery terminals and transport trailer fill stands. The unique turbine-powered fluid motor responds precisely to changes in product volume even at lower product flow rates. Like all Hammonds injection systems, the 8T dispenses precise quantities of additive at a continuous rate, eliminating the “slugging” effect typically found in meter-pulsed injectors.
- Unique Fluid-powered Turbine injection
- Product meters or pulsars not required
- Even and accurate blend
SPECIFICATIONS
CONSTRUCTION MATERIALS
- Carbon Steel Construction
- Metering Pump: All wetted parts 300 series stainless steel
- Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
- Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
- Upgrade to Hammonds "Smart" System
Product Image

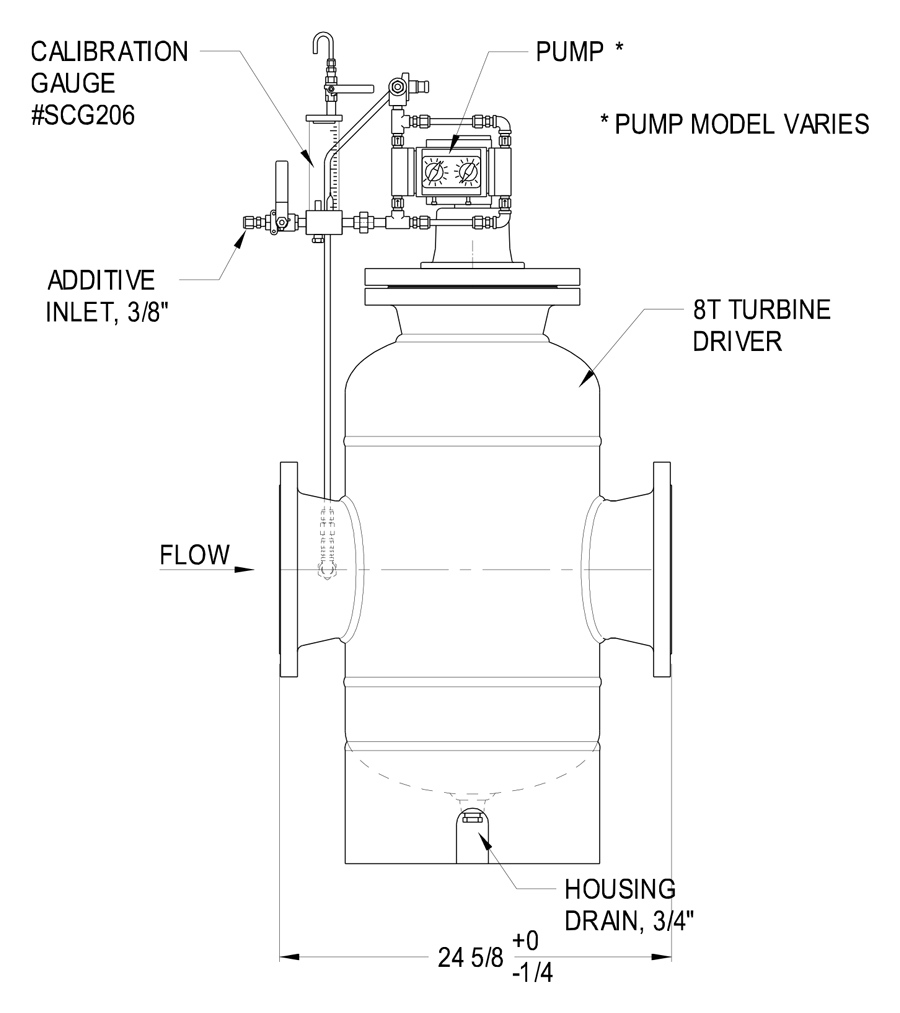

Technical Drawing
(Drawing Above Is Modifiable Per Your Installation)
