- Flooded suction required
- Number of Additives: 1 Standard, up to 4 optional
- 12" 150# connection standard (other connections available, consult factory for details)
- Injection Ratios: 0-4000 ppm depending upon application
- 1000-8000 gpm continuous operation
- Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
- Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
- Product Viscocities: up to 10,000 ssu
- Fuels, Oils, Additives and Liquid Gases
- Duty Cycle: Intermittent
Model 2400
Model 2400
SPECIFICATIONS
CONSTRUCTION MATERIALS
- Caron Steel fabrication
- Metering Pump: All wetted parts 300 series stainless steel
- Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
- Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
- Upgrade to Hammonds "Smart" System
Product Image

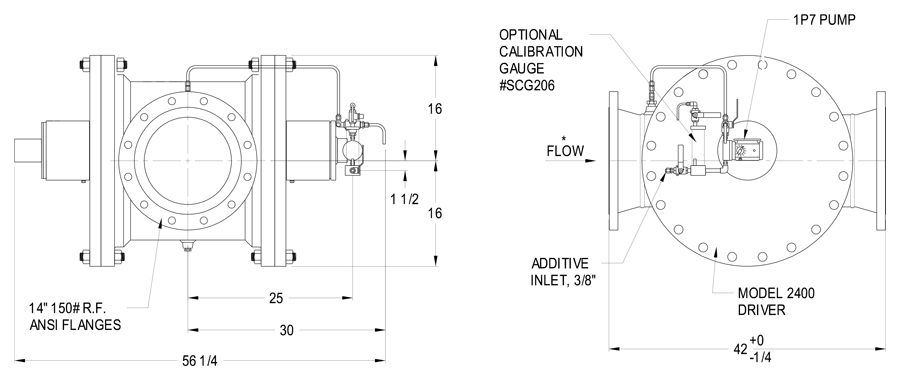

Technical Drawing
(Drawing Above Is Modifiable Per Your Installation)
